Water Treatment Equipment : Deiron Filter

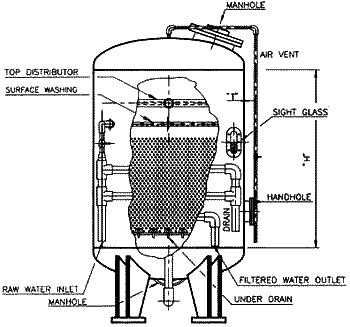

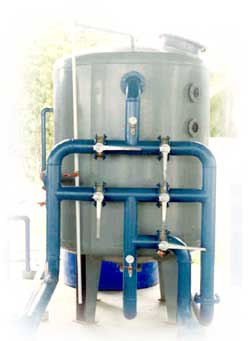

DEIRON FILTER is designed to remove iron (colorless) & oxidized iron (red color) and manganese from water.

Application:

- Remove yellowish or red color caused by iron and manganese in water.
- Eliminate ferric & ferrous that will cause corrosion in your system.

Capacity:

- Standard design : Our deiron filter flow rate is ranging from 0.1 to 150 m3/hr.
- Made to order : The deiron filter can be built to suit your needs. It is your choice to have your won limitation hardness, automatic or manual system or even make your own choice of shell material and component, etc.
- Media : Birm or Manganese Green Sand.



OUR STANDARD DEIRON FILTER

Model

Flow rate
(cu.m./hr)

Area Required
LxDxH (m)

Operating W. (tons)



CDF-01

0.1-1.5

1.4x2.2x2.4

0.40

CDF-02

1.5-2.0

1.5x2.3x2.4

0.65

CDF-03

2.0-4.5

1.7x2.5x2.4

1.10

CDF-04

4.5-6.5

1.9x2.7x2.4

1.87

CDF-05

6.5-8.5

2.0x2.8x2.4

2.18

CDF-06

8.5-10.0

2.0x2.8x2.7

2.43

CDF-07

10.0-13.0

2.3x3.1x2.7

3.31

CDF-08

13.0-20.0

2.4x3.2x2.7

4.06

CDF-09

20.0-22.0

2.6x3.4x2.7

5.50

CDF-10

22.0-30.0

2.8x3.6x2.7

7.00

CDF-11

30.0-35.5

3.0x3.8x2.7

8.58

CDF-12

35.0-40.0

3.3x4.3x2.7

11.25

CDF-13

40.0-50.0

3.3x4.3x2.7

11.00

CDF-14

50.0-60.0

3.5x4.5x2.7

12.94

CDF-15

60.0-75.0

3.8x4.8x2.7

16.69

CDF-16

75.0-90.0

4.0x5.0x2.7

19.18

CDF-17

90.0-100.0

4.3x5.3x2.7

22.58

CDF-18

100.0-120.0

4.5x5.5x2.7

26.08
