Water Treatment Equipment : Sand Filter

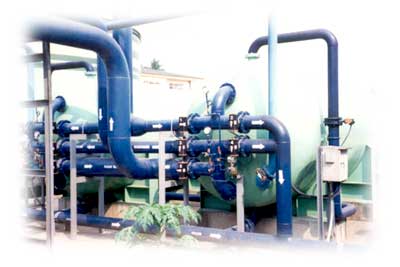

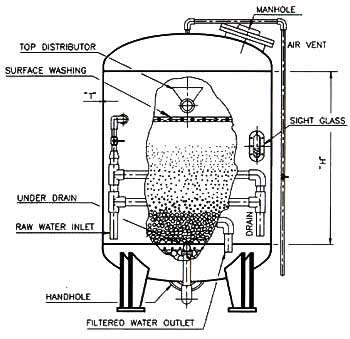

Vertical Sand Filter Horizontal Sand Filter

SAND FILTER is a basic industrial standard for removal of turbidity and sediment from water. Application: - Pre-filtrate for other industrial process water treatment system. - Pre-filtrate ground and surface water for general use. - Remove particles approx. above 40 microns. Capacity: - Standard design : Our sand filter flow rate is ranging from 0.1 to 120 m^3/hr. - Made to order : The sand filter can be built to suit your needs. It is your choice to have automatically / manually operated system or even make your own choice of shell material, type and brand of component, etc. - Media : Selected grade sand and gravel.

OUR STANDARD SAND FILTER

Model	Flow rate (cu.m./hr)	Area Required LxDxH (m)	Operating W. (tons)
CSF-01	0.1-1.5	1.4x2.2x2.7	0.44
CSF-02	1.5-2.0	1.5x2.3x2.7	0.71
CSF-03	2.0-4.5	1.7x2.5x2.7	1.23
CSF-04	4.5-6.5	1.9x2.7x2.7	2.10
CSF-05	6.5-8.5	2.0x2.8x2.7	2.44
CSF-06	8.5-10.0	2.0x2.8x2.7	2.75
CSF-07	10.0-13.0	2.3x3.1x2.7	3.72
CSF-08	13.0-20.0	2.4x3.2x2.7	4.64
CSF-09	20.0-22.0	2.6x3.4x3.0	6.18
CSF-10	22.0-30.0	2.8x3.6x3.0	7.76
CSF-11	30.0-35.0	3.0x3.8x3.0	9.52
CSF-12	35.0-40.0	3.3x4.3x3.0	12.50
CSF-13	40.0-50.0	3.3x4.3x3.0	12.50
CSF-14	50.0-60.0	3.5x4.5x3.0	14.71
CSF-15	60.0-75.0	3.8x4.8x3.0	18.91
CSF-16	75.0-90.0	4.0x5.0x3.0	21.73
CSF-17	90.0-100.0	4.3x5.3x3.0	25.57
CSF-18	100.0-120.0	4.5x5.5x3.0	29.55
