WATER SOFTENER

Water Treatment Equipment : Water Softener

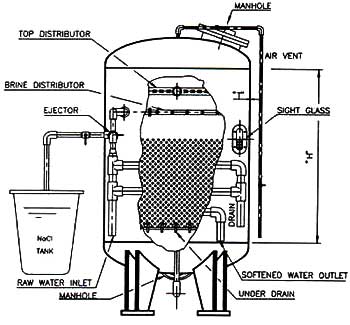

SOFTENER is designed to remove calcium and magnesium which caused hardness in water.

Application:

- Remove hardness from water.
- Eliminate scale built up in boiler and cooling system.
- Improve feed water quality for boiler, cooling system and others.

Capacity:

- Standard design : Our softener flow rate is ranging from 0.1 to 120 m³/hr., reducing hardness below 10 ppm.
- Made to order : The softener can be built to suit your needs. It is your choice to have automatically /manually operated system or even make your own choice of shell material, type and brand of component, etc - Media : Cation Exchange Resin

OUR STANDARD SOFTENER

Model	Flow rate (cu.m./hr)	Area Required LxDxH (m)	Operating W. (tons)
CSO-01-A2	0.1-1.5	1.9x2.1x2.4	0.15
CSO-02-A2	1.5-2.0	2.1x2.2x2.4	0.27
CSO-03-A2	2.0-4.5	2.3x2.3x2.4	0.43
CSO-04-A2	4.5-6.5	2.6x2.5x2.4	0.74
CSO-05-A2	6.5-8.5	2.6x2.5x2.4	0.74
CSO-06-A2	8.5-15.0	2.8x2.7x2.4	1.40
CSO-07-B2	15.0-20.0	3.1x2.8x2.7	1.76
CSO-08-B2	20.0-25.0	3.1x2.8x2.7	2.10
CSO-09-C2	25.0-35.0	3.7x3.1x3.0	3.17
CSO-10-C2	35.0-40.0	3.8x3.2x3.3	3.93
CSO-11-C2	40.0-50.0	4.0x3.4x3.3	5.29
CSO-11-D2	40.0-50.0	4.1x3.4x3.9	6.85
CSO-12-D2	50.0-60.0	4.9x3.6x3.9	8.58
CSO-13-D2	60.0-75.0	5.1x3.8x3.9	10.49
CSO-14-D2	75.0-90.0	5.4x4.3x3.9	14.36
CSO-15-D2	90.0-120.0	5.6x4.5x3.9	16.13
