Water Treatment Equipment : Multimedia Filter




Multimedia Filter

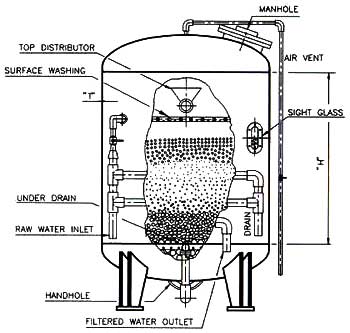

MULTIMEDIA FILTER is designed to remove turbidity, sediment and oxidized ion with better efficiency than the sand filter.

Application:

- Primary filtration for other industrial process water treatment system with higher flow rate than the sand filter.
- Remove particles approx. above 20 microns.
- Ideally, use for ground and surface water pre-filtration.

Capacity:

- Standard design : our multimedia filter flow rate is ranging from 0.1 to 150 m3/hr.
- Made to order : The multimedia filter can be built to suit your needs. It is your choice to have automatically/manually operated system or even make your own choice of shell material, type and brand of component, etc.
- Media : Anthracite, Selected grade sand and gravel.



OUR STANDARD MULTIMEDIA FILTER

Model

Flow rate
(cu.m./hr)

Area Required
LxDxH (m)

Operating W. (tons)


CMF-01

0.1-1.0

1.3x2.1x3.0

0.30

CMF-02

1.0-1.5

1.4x2.2x3.0

0.52

CMF-03

1.5-2.5

1.5x2.3x3.0

0.85

CMF-04

2.5-4.5

1.7x2.5x3.0

1.48

CMF-05

4.5-6.0

1.7x2.5x3.0

1.48

CMF-06

6.0-8.5

1.9x2.7x3.0

2.50

CMF-07

8.5-11.0

2.0x2.8x3.0

2.92

CMF-08

11.0-13.0

2.0x2.8x3.0

3.20

CMF-09

13.0-17.0

2.3x3.1x3.0

4.46

CMF-10

17.0-25.0

2.4x3.2x3.3

5.55

CMF-11

25.0-28.0

2.6x3.4x3.3

7.39

CMF-12

28.0-40.0

2.8x3.6x3.3

9.28

CMF-13

40.0-50.0

3.0x3.8x3.3

11.39

CMF-14

50.0-60.0

3.3x4.3x3.3

15.65

CMF-15

60.0-75.0

3.5x4.5x3.3

17.59

CMF-16

75.0-90.0

3.8x4.8x3.3

22.55

CMF-17

90.0-100.0

4.0x5.0x3.3

25.92

CMF-18

100.0-125.0

4.3x5.3x3.3

30.46

CMF-19

125.0-150.0

4.5x5.5x3.3

35.21
